Standard Pressure switch for water pumps
1. Specification:
Spec. | Value |
Pressure range | 0~0.1MPa......60MPa; 1bar…600bar; 14.5psi…8700psi 10000MmH20…6118000mmH2O 0.98atm…592stm |
Load pressure | 1.5times nominal value pressure (1.5Χ) |
Rupture pressure | 3times nominal value pressure (3χ) |
Accuracy | ±0.5%F.S, ±1%F.S, ±2%F.S |
Stability | Typical value 0.25%F.S, Max.: 0.5%F.S |
Operating temperature | -20°C~60°C |
Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti |
Output signal | The relay output |
Power supply | 24Vdc |
Contact load | 0.5A 125VAC/1A 30VDC |
Insulation | >100M Ω@50V |
Pressure port | M20×1.5, G1/4, G1/2, R1/2, NPT1/2 |
Pressure type | G,S | Response time: 10ms |
EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 |
2. Feature :
Accuracy : 0.5%F.S, 1%F.S, 2%F.S
Adjustable alarm output
With on-site switch indicator
Various pressure range and switch output
3. Application:
Hydraulic control
Petrochemical
Pressure Instruments
Automatic detection system
Machine control
Metallurgical and Chemica
4. Electronic interface and signals definition
Electric connection |
Color | Red | Black | White |
Definition | Power+ | Power - | Common terminal |
Color | Blue | Green | Grey |
Definition | Normally Closed | Normally open | Shield |
5. Package

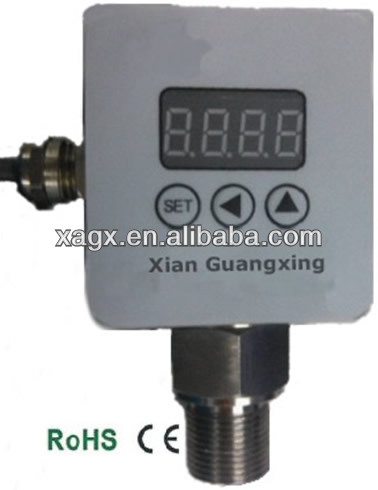

6. Product picture
NO.1 One piece sample is available.
NO.2 Supplier Assessment--onsite Check
NO.3 100% real photos--Detailed images, detailed description
NO.4 7*24 hours online--Efficient service, Professional answers
NO.5 After the receipt of the goods if the quality problems can be returned(Not artificial damage, Never used)
******************************************************************************************************************************************
Question 1
What about the warranty?
Answer,
The normal warranty is 12 months.
Question 2
We want samples first, do you support?
Answer,
Yes, we support samples. It's better for both sides.
