GXRS series tank water level indicator sensor
1. Products Introduction
The GXRS fuel series sensor is made of stainless steel. It applies the principle of the liquid flotage and magnetic induction to measure the liquid level. The product has good anti-corrosion performance, high measuring precision and preventing oil leakage when turned over. These made the sensor be widely used in light truck, bus, boat, and engineering mechanism fields. Graceful design and excellentquality attract the world famous vehicle OEM.
The GXRS series sensor is a cost effective fuel level sensor designed for smaller trucks. The sensor is designed according to the actual tank shape for exact measurements of the tank content. Measurements are done by series of reed switches positioned inside the level tube. A float. with built- in magnets then triggers the reed relays. generating a potential - free resistance with a ohm value that increases or decreases according to the respective fluid level. Resistance output is fully customizable. The float is the only moving part of the sensor. thereby minimize potential mechanical failures. All sensors are fully insulated to protect against voltage inside the tank.
2. Parameters
| Material | 304 stainless steel |
| Fitting | bulge fitting, thread fitting, SAE fitting |
| Length range | 100mm~2000mmm |
| Installation | bayonet, standard 5 holes or standard 6 holes, can be customzied |
| Gasket | FPM gasket, NBR gasket |
| Rated Power | 125mW |
| Rated Current for alarm switch | 500mA |
| Wire | PVC material (PA corrugated pipe aacover is optional) |
| Connector | Brand Delphi , Tyco, others is available according to customers’ requirement |
| Output signal | Resistance control signal 0-190Ω, 240-33Ω, or customize as required |
| Precision Range | 10-40mm |
| Operating Temperature | -40℃~+85 ℃ |
| Protection Grade | IP67 |

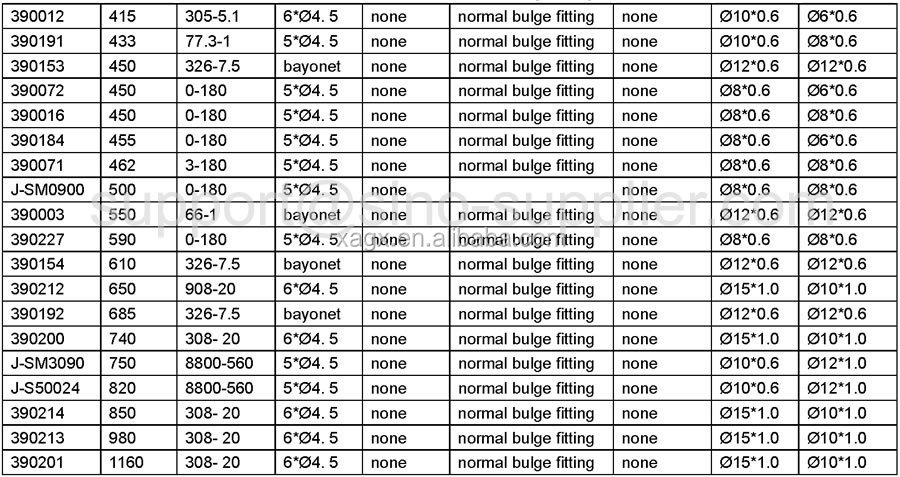

3. Dimension

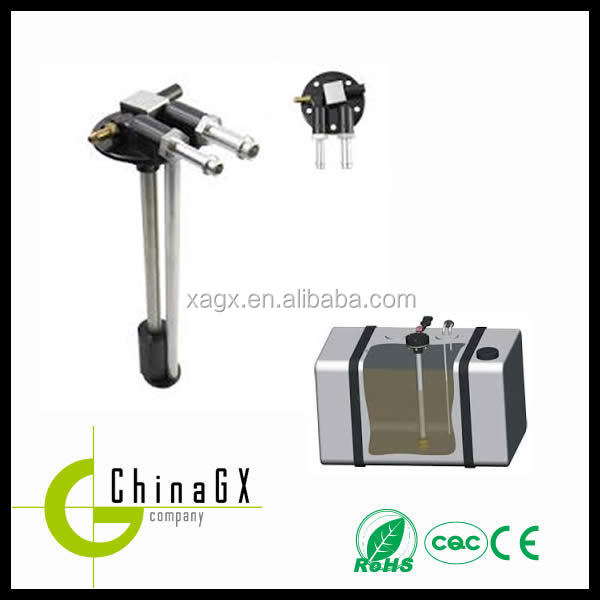

4. Application
1. mainly used in liquid level detection and oil absorbing function for oil tank

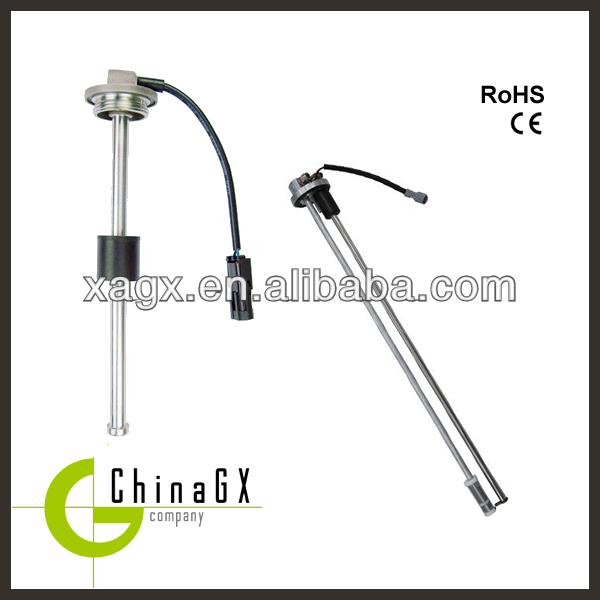

6. Product picture
******************************************************************************************************************************************
