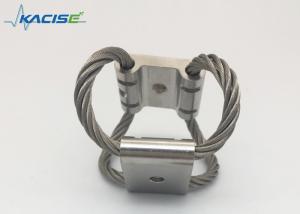

Best Price on Customized Longlife Anti Vibration Wire Rope Isolator

  • 1
  • 2

Brand Name : Kacise

Model Number : GR

Certification : ISO9001:2008

Place of Origin : China (Mainland)

MOQ : 1ps

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal

Supply Ability : 10000 Pieces per Week

Delivery Time : 5-8 work day

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Material : Aluminum and Stainless steela, Stainless Steel

Applications : Marine and Industrial Engine Mounts

Shock resistance : 20g/11ms

Relative product : Backdraft Damper

Type : Shock Absorber

Feature : Durable

Function : Return Air

Contact Now

Factory price wire rope isolator for photographic equipment

Product Description

Wire rope isolators are stable mounting assemblies of high quality stranded wire rope held with rugged metal retainers. Each isolating element has specific response characteristic determined by the diameter of the wire rope, the number of strands, the cable length, the cable twist or lay, and the number of cables per section.

Inherent damping is provided by flexure hysteresis, i.e., the rubbing and sliding friction between the strands of the wire rope.

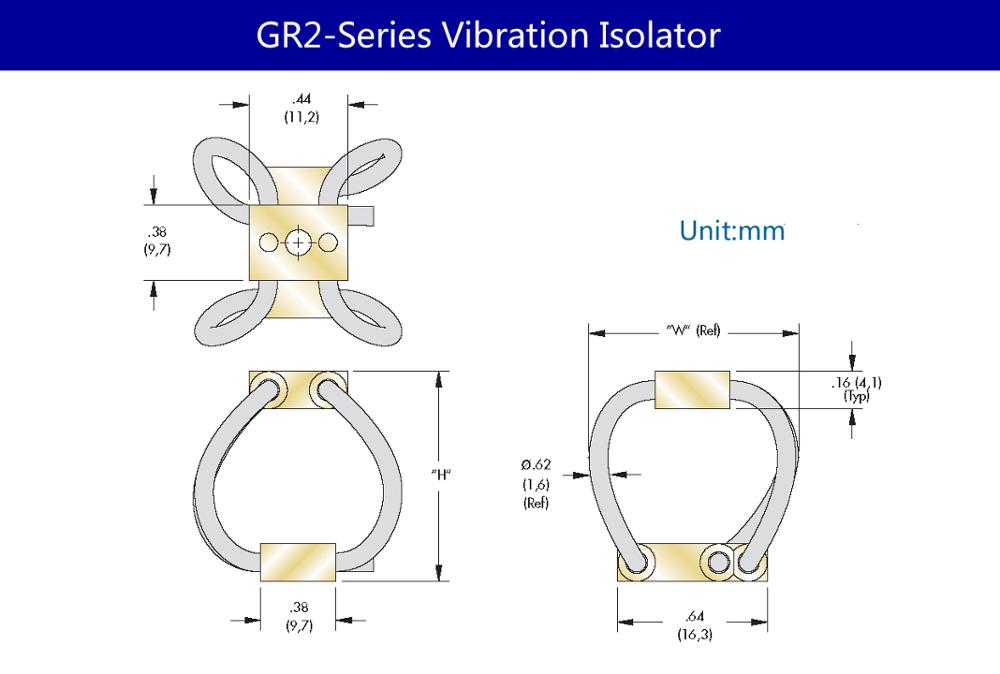

GR Series Vibration Isolator

♦ Be designed as the same production of France

♦ Feature with less volume and weight

♦ With the characters of three dimensional variable stiffness and friction

♦ Widely be used on the small devices

Options

Best Price on Customized Longlife Anti Vibration Wire Rope Isolator

Dimension Parameter Table

Model W
(mm)		 H
(mm)		 M
(mm)		 Vertical loading
(KG)		 45°loading
(KG)

Side hanging loading

(KG)
GR1-100 19 17 M3 0.33 0.16 0.11
GR1-200 20 19 0.24 0.11 0.09
GR1-300 23 23 0.18 0.076 0.07
GR1-400 26 26 0.13 0.05 0.05
GR2-100 20 16 M3 1.2 0.58 0.56
GR2-200 21 19 0.93 0.49 0.4
GR2-300 24 23 0.67 0.33 0.29
GR2-400 27 27 0.49 0.22 0.2
GR3-100 22 19 M3 2.9 1.2 1.2
GR3-200 24 23 2.2 1.1 0.85
GR3-300 27 27 1.8 0.67 0.62
GR3-400 30 33 1.1 0.44 0.44
GR4-100 47 42 M6 2.4 1.1 0.79
GR4-200 54 53 1.8 0.67 0.6
GR4-300 59 60 1.3 0.53 0.5
GR4-400 68 75 0.67 0.36 0.3
GR5-100 48 41 M6 8 2.4 1.8
GR5-200 54 53 3.8 1.3 1.2
GR5-300 59 60 2.7 1.1 0.9
GR5-400 67 76 1.6 0.67 0.6
GR6-100 54 47 M6 14.2 4 3.5
GR6-200 59 55 9.3 3.3 3
GR6-300 64 64 6.7 2.2 2.1
GR6-400 73 79 3.6 1.3 1.2
