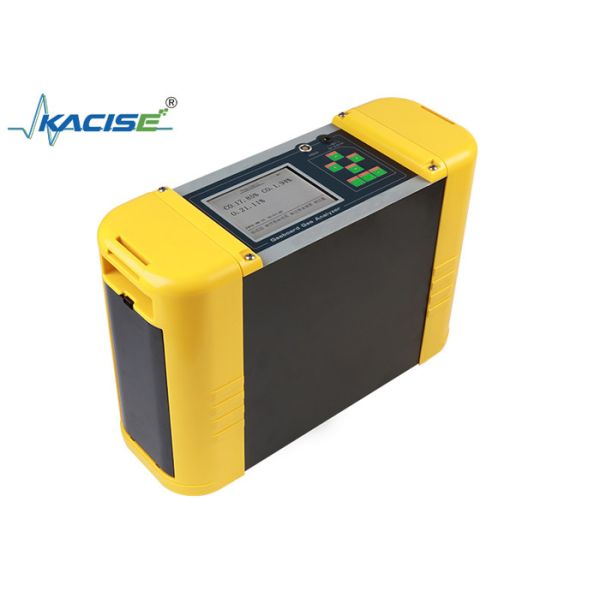

KGD - MQ - 514 Combustion Efficiency Analyzer for Industrial Sites

Name: KGD MQ 514 Combustion Efficiency Analyzer for Industrial Sites
Brand: KACISE
Price: 1 USD

Brand Name : KACISE

Model Number : KGD-MQ-514

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Measured Components : CO, CO₂, O₂, Flue Gas Temperature; SO₂, NO, NO₂ sensors can be extended

Measurement Principle : O₂: ECD; CO/CO₂: NDIR; Flue Gas Temperature: K - type thermocouple or S - type thermocouple

Measurement Range : O₂: (0 - 21)%; CO: (0 - 5000) ppm; CO₂: (0 - 25)%; Flue Gas Temperature: (0 - 800)/(0 - 1200)℃

Linear Error : CO/CO₂: ±1%F.S.; O₂: ±2%F.S.; Flue Gas Temperature: ±3℃; or ±1% of measured value

Resolution : O₂: 0.01%; CO: 1ppm; CO₂: 0.01%; Flue Gas Temperature: 0.1℃

Repeatability : ≤ 2%

Contact Now

KGD - MQ - 514 Combustion Efficiency Analyzer for Industrial Sites

Product Introduction

The KGD - MQ - 514 Combustion Efficiency Analyzer adopts non - dispersive infrared (NDIR) gas analysis technology with independent intellectual property rights and long - life electrochemical sensing technology. It can simultaneously measure the volume concentrations of gases such as CO, CO₂, and O₂, as well as the flue gas temperature, and calculate the excess air coefficient, providing a basis for adjusting the combustion conditions in industrial sites.

Product Features

Simultaneously measures flue gas components and temperature: It can simultaneously measure the volume concentrations of gases such as CO, CO₂, and O₂ in the flue gas, and automatically calculate and display the flue gas temperature and the excess air coefficient.
High measurement accuracy: It has a wide measurement range. The sensor will not be damaged due to over - range, and it has a long service life and high accuracy.
Portable body design: Equipped with an integrated imported sampling gun, it is easy to carry and can meet the needs of both on - site industrial measurement and laboratory airbag sampling analysis.
Intelligent power management: It is equipped with a soft - start power switch to prevent the instrument from operating under low - power conditions.
Simple data management: It automatically stores measurement data, has query and deletion functions, and can transmit data to the superior centralized control system through multiple interfaces.

Technical Parameters

Measured Components	CO, CO₂, O₂, Flue Gas Temperature; SO₂, NO, NO₂ sensors can be extended
Measurement Principle	O₂: ECD; CO/CO₂: NDIR; Flue Gas Temperature: K - type thermocouple or S - type thermocouple
Measurement Range	O₂: (0 - 21)%; CO: (0 - 5000) ppm; CO₂: (0 - 25)%; Flue Gas Temperature: (0 - 800)/(0 - 1200)℃
Linear Error	CO/CO₂: ±1%F.S.; O₂: ±2%F.S.; Flue Gas Temperature: ±3℃; or ±1% of measured value
Resolution	O₂: 0.01%; CO: 1ppm; CO₂: 0.01%; Flue Gas Temperature: 0.1℃
Repeatability	≤ 2%
Operating Temperature	(0 - 50)℃
Relative Humidity	(5 - 85)%
Response Time	T90 < 15s (NDIR)
Electrical Parameters	Electrical Parameters
Communication	RS - 232/RS - 485
Battery Power Supply	Powered by built - in rechargeable lithium - ion battery, with an external 12.6V charger, can work continuously for more than 10 hours
AC Power Supply	100 - 240VAC, 80W
Display	LCD Display
Functional Configuration	Built - in imported sampling air pump, anti - pressure capacity 200hPa
	Self - diagnosis function available for on - line inspection of sensor status
	Optional pretreatment device
